How should I dispose my old helmet?

A used helmet, even if it has not been damaged, should be always be destroyed. Do not sell or give away old helmets as the protective foam contours to the shape of the original rider’s head and will not provide a new user with full protection. Helmets are designed to absorb only ONE impact. After your helmet has endured any impact, the absorption liner portion of your helmet will have dispersed the energy from the impact, thus rendering the liner compacted and therefore compromised. Even if there is NO VISIBLE damage to the shell, the helmet’s usefulness is expired after one impact.

Can I personally modify my helmet?

It is extremely dangerous to modify your helmet by drilling holes, cutting the shell and/or absorption liner. Any such actions will weaken the helmet and may cause serious injury in the event of an accident. Removing any parts such as, vents, liners, cheek pads, mouth guards, rubber trimming, etc. before use will also disrupt the intended design of the helmet and may expose you to severe injury or death in the event of an accident. Do not paint your helmet as the chemicals of the paint may adversely affect the materials used in your helmet, thereby weakening it.

Can I Use my helmet after an impact?

Helmets are designed to absorb only ONE impact. After your helmet has endured any impact, the absorption liner portion of your helmet will have dispersed the energy from the impact, thus rendering the liner compacted and therefore compromised. Even if there is NO VISIBLE damage to the shell, the helmet’s usefulness is expired after one impact.

Are SCOTT Goggles compatible with all helmets?

SCOTT goggles are engineered to engage flawlessly with a variety of helmets.

How to wear helmet correctly with proper fitting?

While it is not possible for any helmet to protect the user against all foreseeable impacts and accidents, the proper use of this helmet will provide a far greater level of protection in the event of an accident than if no helmet was worn. For the helmet to function properly and to help reduce the risk of permanent injury or death, it is imperative that the helmet fits securely and firmly on the head and that all retention straps are properly fastened. When the retention strap is properly fastened it should not be possible, in most instances, for the helmet to be removed from the head by either rolling the helmet towards the rear or front. The helmet must NOT be too low or high on the head because it will interfere with your line of sight. Eyes should be central to the eye aperture.

How do I choose the right helmet size?

IT IS IMPERATIVE THAT THE FIT OF THE HELMET BE SNUG FOR IT TO PERFORM PROPERLY.

• Grasp the chinstraps (see diagram 1) and expand the helmet opening.
• Slide your head into the helmet. If the helmet does not fit snugly or if the helmet feels loose in any way, you should try a smaller size.
• To check for proper fitting, place the helmet on your head.
• Measure your head size by passing a tape measure around your head approximately 2 cm above the eyebrow line
• Make sure the helmet lining fits snugly around your head and that the cheek pads are pressed close onto your cheeks.
• There should be no space between your brow and the lining.
• Take hold of the helmet on each side and try to move the helmet up and down as well as side to side (see diagram 2).
• You should feel the skin on your face and head being pulled along with the helmet.
• If the helmet is able to move freely without rubbing your skin, the helmet is too large, and you need a smaller size.

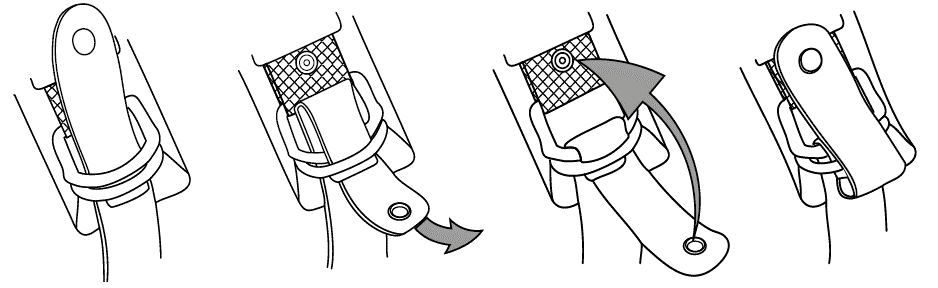

How do I fasten the chin strap on my helmet?

• Pass the strap through both rings starting with the inside ring.
• Separate the rings and pull the free end of strap back through the inside ring only.
• Secure the free end of the snap using the red connectors.
• Proper tightening of the chinstrap is critical to the functionality of this helmet.
• If you are able to pull down on the fastened chinstrap from under your chin and create slack, it is not properly fastened through the D-Rings.
• Follow the steps below to ensure proper fastening.

How to remove and install visor on helmet?

• Remove the two front screws from the visor.
• Press down on the visor and give it a firm push toward the front.
• To replace the visor, reverse the mentioned process.
• Avoid damage to the visor by over tightening the screws.

350 EVO, 350 PRO, 350 KIDS HELMETS

• Remove the two side screws and washers from the visor.
• Remove the central screw located underneath the visor.
• To replace the visor, reverse the mentioned process.
• Avoid damage to the visor by over tightening the screws.
• Use the central screw to lock the visor in your favoured position.

How to take care of your helmet?

It is essential that the goggles worn with all off-road helmets are always clean and the lens is replaced regularly. Before purchasing your goggles, ensure the goggles fit your helmet correctly and that they do not interfere with your vision and allow the maximum peripheral vision.

How to remove inner liner and cheek pads?

• To remove the cheek pads, gently pull the padding off from the three snap buttons holding it in place and pull out the retaining flap from underneath the lower helmet beading.
• Repeat on the other side.
• To remove the liner, unsnap the rear portion of the inner located towards the rear of the helmet. Gently pull out the liner without forcing the liner out from its front clips located at the top portion of the visor opening.
• Reverse the steps to reinstall liner.

How should I clean my helmet?

• Do not use any solvents, hot water, glass cleaners, or gasoline to clean your helmet.
• These materials can cause severe damage to the helmet and weaken its structural integrity.
• Any such damage to the helmet can prevent the helmet from performing properly in the event of an accident which could result in serious injury or death.
• To clean your helmet, it is best to use lukewarm water with a damp soft cloth.
• Rinse off and dry using a soft cloth.
• Clean your visor with warm water and rinse well.
• Do not use any cleaners or solvents to clean your visor as they may damage the coating of the visor. Majority of the Helmets come with a removable liner to make the cleaning and upkeep of your helmet interior easy and hassle free.
• Remove the liner and cheek pads and hand wash with normal detergent in cold water.
• Let them air dry.
• Do not use a washing machine or tumble dry.
• Hand wash and air dry only.
• For more cheek pad and liner sizing, to maximize comfort. please check with your local dealer for liner/cheek pad sizing options.

What’s the best way to store my helmet?

• Let your helmet air dry after each use and then store it in a cool dry place.
• Excessive heat can damage your helmet.
• In direct sunlight, dark equipment cases or trunks of automobiles can become so hot as to cause heat damage.
• Heat damaged helmets are recognizable by uneven or blistered surfaces.
• Exposure to sunlight may cause colour fading.

Do SCOTT Goggles provide UV protection?

All SCOTT lenses are optically engineered to screen out 100% of harmful UVA /UVB rays.

What Lens is best for me?

Lens tints are personal and the best choice for you may vary depending on the usage and the conditions.

IMPORTANT: Only filter class 0 lenses are suitable for use in conditions of darkness or poor visibility. You will find the filter class on the midtop of the lens. The purpose of the motorsport goggles is to protect you from wind, dust, humidity and harmful rays of the sun.

NB : Only use original accessories, as only they will ensure an exact fit and safety.

* Not suitable for driving at night or in twillight conditions

** Lenses not suitable for road use

How do you put a lens in a goggles frame?

LENS REPLACEMENT INSTRUCTION

• Remove old lens from the frame.
• Insert the new lens into the lens slot at both ends. Holding the top of the lens, pull the nose of the frame up to engage the keyholes. Next, engage the cheek keyholes and lastly, put the top of the lens into the lens slot and engage the top keyholes.
• It may be necessary to stretch the frame slightly to install the lens, so make sure the frame is warm.
• Be sure that the entire lens is properly seated in the frame slot and all frame retention posts are fully engaged with the lens keyholes.

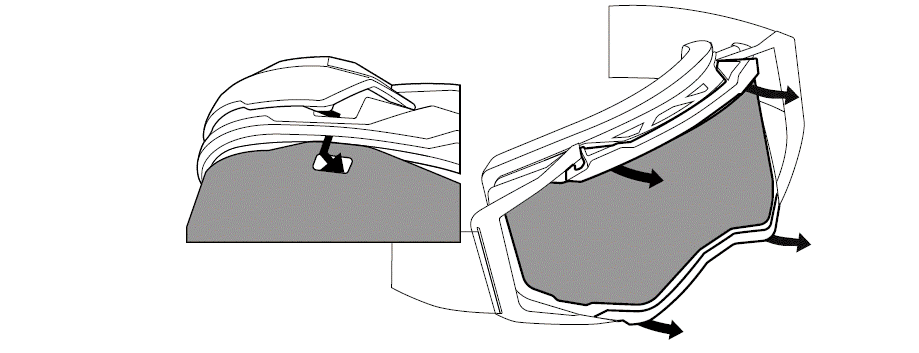

SCOTT PROSPECT:

• Open the holding Clips (two on the top and two on the bottom) by pulling away from the frame to remove the old lens from the frame.
• Insert the new lens into the lens slot at both ends. Put the top of the lens into the lens groove, make sure the holes are in line with the pins and close the two holding clips.
• Put the lower part and the nose part of the lens into the lens groove, make sure the holes are in line with the pins and close the holding Clips.
• It may be necessary to stretch the frame slightly to install the lens, so make sure the frame is warm.
• Make sure the four Clips are closed.

How to clean the Lenses and Goggles?

Depending on the model the lenses have a hydrophilic (anti-fog) coating, which prevents from fogging. It is therefore important to proceed in accordance with the following directions:

• In the event of slight soiling the goggle can be cleaned sufficiently using the storage bag or a damp cloth.
• In the event of heavy soiling the lens can be cleaned under running water and with a little soap.
• Please make sure that the wet lens is not wiped but that the water is merely shaken off and dabbed with a soft, clean cloth. Wiping can destroy the anti-fog coating. This can also occur if paper towels are used.
• Care should be taken with mirrored lenses. Please ensure that there are no dust particles on the lens or the cleaning cloth when cleaning.
• We advise strongly against the use of solvents.
• Do not wash motorsport goggles in the wash machine.
• It is essential for the lens to be changed if it can no longer be guaranteed to work properly and provide good protection because of soiling, mechanical wear and tear or improper usage.
• Scratched or damaged lenses have to be replaced and must not be used again.

What Is SCOTT Work Film System?

The WORKS Film system is made up of the SCOTT Anti-Stick Grid and two individual Roll off canisters.

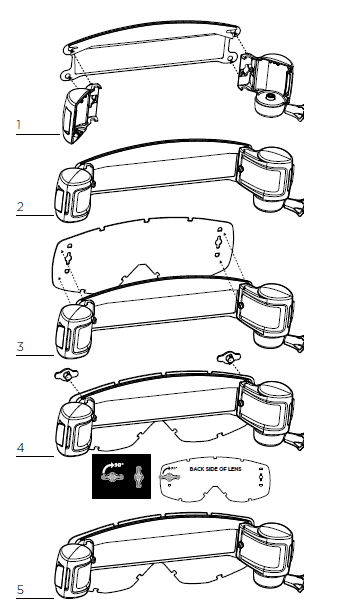

How to install Grid and Canister?

• Before installing the grid and the canister open the canisters. Lift the end of the Mud flap and assemble the canisters to the grid by fitting the Canister pins in the Grid holes. PICTURE 1
• Reattach the doors and make sure the Mud flap lug is placed inside the Canisters. PICTURE 2
• Put the Grid with Canister onto the lens and fix it with the pins by turning them 90°. PICTURE 3 and 4

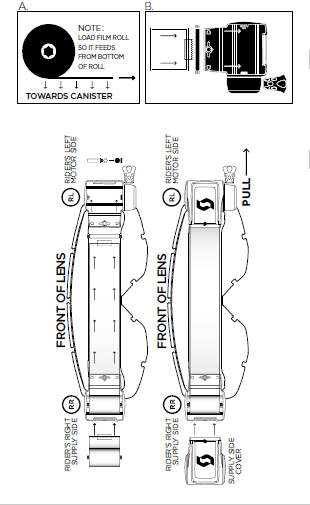

How to Install the Film?

• Remove the door from the supply canister and remove the tape from the film. Expose the first few centimetres of film and orient the film roll (A).
• Insert the film roll into the supply canister and position the exposed tail of film beneath the Mud flap, the lug helps.
• Reattach the door and make sure the Mud flap lug is placed inside the Canister
• Attach the exposed tail to the motor side axle (B). This is performed with the axle out of the motor RL canister. Place the axle into the receiver in the motor canister bottom. Replace the motor side door. Pull the string once or twice to ensure that the film is securely attached to the axle.

What are the safety Precautions for SCOTT WORK FILM System?

• Make sure the lens is clean and dry before loading the film.
• Store your goggle in a bag after it has been properly cleaned and loaded.
• When advancing the film across the lens use the SCOTT Anti-stick grid as a guide and tuck the film under the Mud flap for best performance.

What are my goggle options if I use prescription lens?

OTG goggles offer protection from the elements and an optimized fit for people requiring prescription glasses.

How to mount nose guard?

Locate the nose guard clip-in holes in the nose area of your goggles.

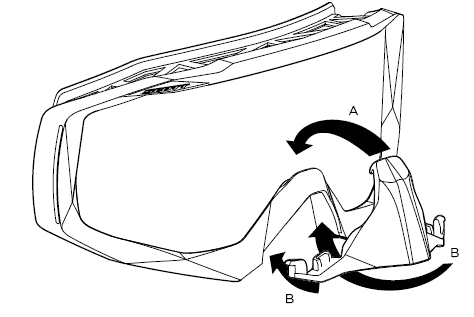

SCOTT HUSTLE MX, SCOTT RECOIL, SCOTT 89Si, SCOTT 89Xi:

1. Introduce the upper clip (A) of the nose guard into the nose bridge of your goggles.
2. Insert the lower clips (B) of the nose guard into the holes located at the bottom of the goggle frame.

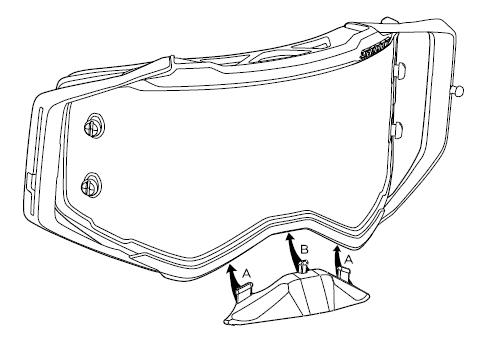

SCOTT PROSPECT:

1. Introduce the two side pins (A) of the nose guard in the two holes at the bottom of the goggle frame.
2. Then, insert the centre pin (B) of the nose guard into the middle hole.

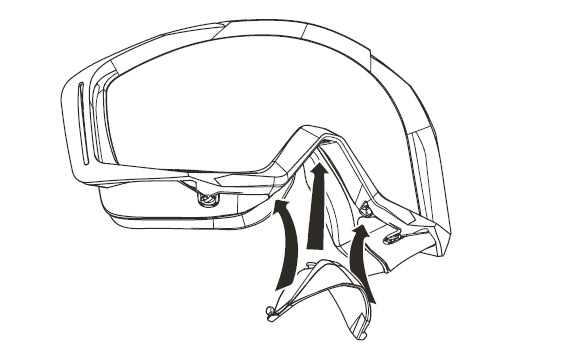

SCOTT TYRANT:

1. Insert the nose guard clips into the holes.

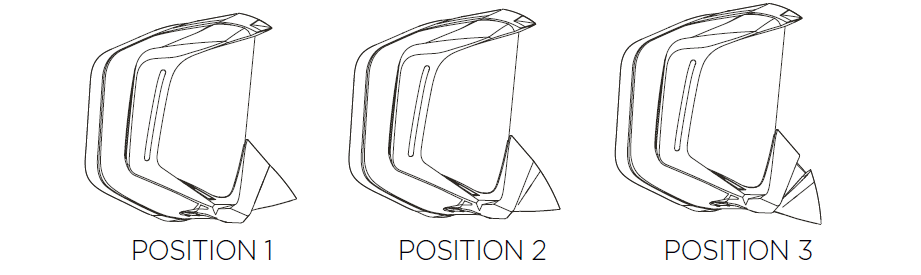

Exclusive to SCOTT, the Adjustable Nose Guard on the Tyrant Goggle can be set to one of three positions allowing riders to configure the guard exactly to their liking.

After mounting, ensure that the nose guard is securely fastened to the goggle frame. To remove the nose guard, reverse steps 1 and 2. First unclip the lower clips (B) and then the upper clip (A).

How to clean the nose guard?

The nose guard can be cleaned under running water and with a little soap. We advise strongly against the use of solvents.

How do I adjust my protector for proper fit?

To work properly, the protector must cover the protected area correctly. The garment must be the correct size, chosen from the manufacturer’s size chart. Wear, dirt or any kind of damage may compromise their efficiency.

What are the sizes of protector?

Please refer to below link:

Protection Size Chart 1

Protection Size Chart 2

How do I adjust my protector for proper fit?

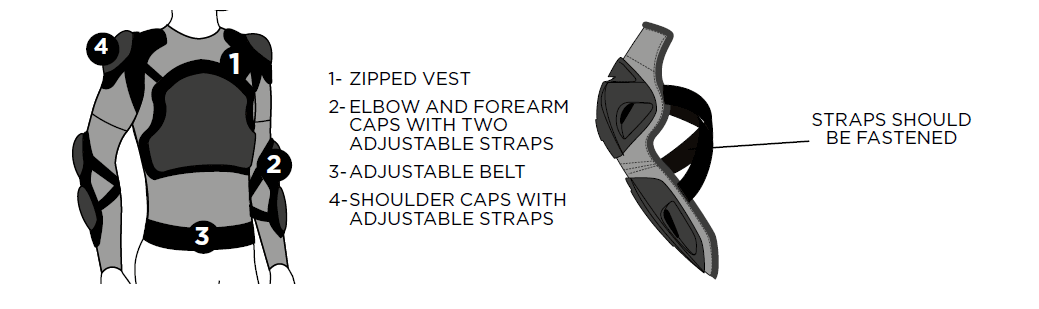

ELBOW AND FOREARM CAPS POSITIONING

Ensure that the caps are well positioned to cover the elbows and forearms and that the straps are well fixed and adjusted. Do not over tighten the straps, this may affect the blood circulation in your arms. This should not cause discomfort in your usual riding position.

How do I adjust my knee guard protector for proper fit?

The knee guards should not cause discomfort in your usual riding position. Be sure that the knee caps are correctly positioned over your own knee caps. Do not over tighten the gripping straps

blood circulation could be affected.

How should I take care and maintain my protector?

What will a neck brace help protect against?

• Hyperextension (over-bending of the head in rearward direction)
• Lateral Hyper flexion (over-bending of the head to one side)
• Posterior Hyper translation (extreme movement of head and helmet, rearward on the neck)
• Coupled Axial Loading (Helps prevent axial loading only when the axial forces act in combination with other mechanisms)
• Hyper flexion (over-bending of the head in forward direction)

What is the use of Motorcycle garments?

They are designed and manufactured to provide limited protection against the risk of abrasion, shock, tearing and cutting in the event of a fall. The Motorcycle garments do not safeguard against other traumas or extreme movements. They provide this mentioned limited protection only in areas covered by the garments.

How do I adjust my motorcycle garment for proper fit?

For a protector to work properly, it must cover the protected area correctly. The garment must be the correct size, chosen from the manufacturer’s size chart. Protectors are designed to stay firmly in contact with the body. Straps and elastic bands should be fastened tightly to guarantee stability of the garment during use. Check that all closure systems are securely closed. The Motorcycle garments and protector should fit snugly but not too tight. For maximum protection and safety, the garments should not cause any discomfort. One single size cannot fit all body dimensions (height and shape) so it is important to avoid choosing a protector that is too big as interference with other accessories may occur resulting in a dangerous riding condition. The sizing system of back protectors are based on the jacket size as above schedule. The dimension is intended to be measured on the body with a tape measure. Wear, dirt or any kind of damage may compromise their efficiency.

How the gloves work?

Gloves are designed and manufactured to provide limited protection against the risk of impact in the event of a fall. Most of the gloves provide a limited protection only in areas covered by the glove. Gloves intend to protect the hand from external impacts without reducing the user’s ability to operate the motorcycle controls. The knuckle protection - if present - is meant to cover the area of all four knuckles and is intended to offer a limited impact and abrasion protection of the back of the hand from accidents or sudden collisions with objects.

How do I adjust my gloves for proper fit?

For a Glove to work properly, it must cover the protected area correctly. The garment must be the correct size, chosen from the manufacturer’s size chart. Gloves are designed to stay firmly in contact with the hand. Straps and elastic bands should be fastened tightly to guarantee stability of the gloves during use. Check that all closure systems are securely closed. The gloves should fit snugly but not too tight. For maximum protection and safety, the gloves should not cause any discomfort. Gloves should be worn over or under the jacket sleeves so that the sleeves and cuff overlap; they must not slip off easily even in the event of an accident. Wear, dirt or any kind of damage may compromise their efficiency.

How do I wash and care for my gloves?

How do I restore water repellence on SCOTT Motorsports garments and gloves?

Upon production, SCOTT GORE-TEX® garments and gloves have a water repellent treatment. This treatment prevents the fabric from attracting moisture and dirt, while simultaneously giving optimal moisture vapour transportation to the fabric. Over time, the water repellence will be worn away (especially in vulnerable places like the seat, knees, shoulders, elbows and hands). In order to maintain this water repellence, the garments and gloves should be re-impregnated after each wash (before drying), or when the water repellence is no longer performing. For water repellence treatments, you can use a re-impregnation spray which ensures that only the outer side of the garment and glove will be water repellent. This will again, optimize the moisture transportation of your SCOTT product.

How do I adjust my boots for proper fit?

• To obtain maximum comfort and protection, the motorcycle boots must be adjusted correctly as follows:
• To ensure optimal performance a proper fit is essential.
• First, Place your foot in the boot. If you feel pressure on your ankle, remove your foot from the boot and check for obstructions, then reconfirm comfort level, finally the straps will need to be adjusted.
• Loosen the straps before placing your foot in the boot.
• Place your foot in the boot and begin with the bottom strap.
• Fasten the strap, if the strap is loose, unfasten the buckle and press the strap in a few notches.
• Now close the buckle. If it is not tight enough, repeat the process until you have a snug fit.
• Repeat the process on the three top buckles.
• Now the boots are ready to be worn. The boot offers protection by way of its design and construction materials. Over-tightening the boot will not offer additional protection.

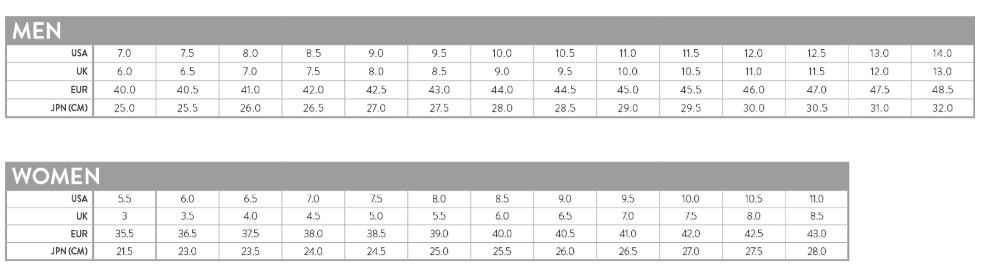

How can I determine the correct size of Boots for me?

For a motorcycle boot to work properly, it must fit and cover the foot and leg correctly. The motorcycle boot must have the correct size, chosen from the manufacturer’s size chart. All motorcycle boots are designed to stay in contact with the foot and the leg. The boots should be used in combination with “PPE” products making sure to choose compatible pants that guarantee continuous leg protection without any obstruction and pressure that could block the user’s movements. To obtain maximum comfort and protection, the motorcycle boots must be adjusted correctly as follows: To ensure optimal performance a proper fit is essential. First, Place your foot in the boot. If you feel pressure on your ankle, remove your foot from the boot and check

for obstructions, then reconfirm comfort level, finally the straps will need to be adjusted. Loosen the straps before placing your foot in the boot. Place your foot in the boot and begin with the bottom strap. Fasten the strap, if the strap is loose, unfasten the buckle and press the strap in a few notches. Now close the buckle. If it is not tight enough, repeat the process until you have a snug fit. Repeat the process on the three top buckles. Now the boots are ready to be worn. The boot offers protection by way of its design and construction materials. Over-tightening the boot will not offer additional protection.

How to take care and maintain boots?

HOW TO WASH AN E-BIKE?

• As an E-Bike is water resistant you can wash it as you would wash a normal bike.
• Remove the major part of the dirt with a water-jet (never use a high-pressure car washer)
• With a soft brush and with the aid of a bike cleaner (bike specific, do not use car or motorbike products), clean the remaining dirt
• Once it’s done, rinse the bike with water to remove the washing fluid (never use a high-pressure car washer)
• When the bike is clean, turn the bike upside down during few seconds in order to remove standing water, then wipe off the bike.
• We recommend to wipe the electrical contact plates of the battery afterwards as well
• To finish, lubricate the chain with bike specific chain lube

WHAT KIND OF MAINTENANCE DO I NEED TO DO ON MY E-BIKE AND HOW OFTEN?

The maintenance is pretty limited and simple. By yourself you can wash it, apply oil on the chain, wipe it down and check brake pad wear. A visit every 3 months to your local dealer is recommended to avoid any mechanical issues.

ARE E-BIKE BATTERIES FIXED ON THE FRAME?

Yes, the battery has a retaining system. You need a key to release the battery from the frame.

DO I NEED TO PEDAL WITH AN E-BIKE?

Yes, SCOTT only sells E-Bikes with pedal assist. This means that if you don’t pedal, nothing happens. This assistance goes generally from +50% of additional power to +300% depending on the mode.

CAN I RIDE MY E-BIKE EVEN IF THE MOTOR IS OFF OR NOT ENGAGED?

Yes. Just as with a non-E-Bike, if the drive unit is off you are still able to pedal. In case of electrical Shimano DI2 gear shifting, even if you run out of battery in the middle of your ride, you will still have 100 "emergency" gear shifts.

HOW SHOULD I STORE THE BATTERY OF MY E-BIKE?

For longer storage we recommend you to stock the battery at ambient temperature, ideally between 18-20° Celsius. Avoid leaving your battery on your bike during cold nights or directly exposing it to the sun.

WHAT DO I DO IF I LOSE MY E-BIKE'S BATTERY'S KEYS?

All SCOTT E-Bike keys come with a serial number. As soon as you have your bike, register your key on Mobile Security, Keyservice Axasecurity. This allows you to order a replacement key whenever you want.

If you don't have this number anymore, please contact your dealer.

CAN I WASH MY E-BIKE?

As an E-Bike is water resistant you can wash it as you would wash a normal bike.

For improving the bearing life-cycle, do not use a high-pressure car washer. Once it's clean, wipe off the bike and lubricate the chain with of bit of oil in order to improve the lifetime of your drive train. We recommend to wipe the electrical contact plates of the battery afterwards as well.

CAN I RIDE MY E-BIKE WHEN IT'S RAINING OR IN THE MUD?

Both the engine and the battery is water resistant, so there is no problem for riding in wet conditions.

CAN I FLY WITH AN E-BIKE?

Getting on a plane with an E-Bike requires special authorizations, please contact your airline company before booking your ticket.

CAN I DO THE MAINTENANCE BY MYSELF ON MY E-BIKE?

Everything related to the drive unit needs to be carried out by the manufacturer for safety and security reasons.

IS IT POSSIBLE TO REMOVE THE BATTERY FROM MY E-BIKE?

Batteries are removable on all SCOTT bikes without tools; all you need is the key for opening the retaining system.

HOW FAST CAN I GO ON AN E-BIKE?

Theoretically there is no maximum speed on an E-Bike; the motor will cut out the assistance above:

45km/h: assistance's speed limit for "Speed Pedelec"(L1e-B)

25km/h: assistance's speed limit for "Powered Cycles" (L1e-A)

HOW LONG DOES IT TAKES TO CHARGE MY E-BIKE BATTERY?

Nowadays most of the batteries (500wh) need around 4.5-5 hours to be charged completely and less than 3 hours for 80%

How fast can I go on an E-Bike?

Theoretically there is no maximum speed on an E-Bike; the motor will cut out the assistance above:

45km/h: assistance's speed limit for "Speed Pedelec" (L1e-B)

25km/h: assistance's speed limit for "Powered Cycles" (L1e-A)

How far and how long I can ride with an E-Bike?

The higher the amount of Whatt hours (Wh) of the battery is, the greater range you can cover in theory. In reality lots of factors have to be taken into consideration:

• The weight of the bike: the heavier the bike is, the more energy it needs to be propelled. At BERGAMONT the weight and the balance of the bike is always a key point.
• The quality of the motor: a smooth and smart motor will save energy and increase range. BERGAMONT bikes are equipped with Shimano and Bosch motors, which are the actual benchmark on the market. Motors are also adjusted with regards to the program of the bike, a city bike, for instance, will have different settings compared to an off-road bike.
• The environment: road quality, wind, temperature, grade of the road, all of these play an important role.

Riding 80km* with a 500Wh battery is a good point of reference on an e-mountain bike and 100km for an e-urban bike

*on eco mode with 80kg rider.

Does every BERGAMONT E-Bike have a walk assist mode?

Yes, all drive units mounted on BERGAMONT E-Bikes have a walk mode (Up to 6km/h).

Can I ride my E-Bike even if the motor is off or not engaged?

Yes. Just as with a non-E-Bike, if the drive unit is off you are still able to pedal. In case of electrical Shimano DI2 gear shifting, even if you run out of battery in the middle of your ride, you will still have 100 "emergency" gear shifts.

Do I need to pedal with an E-Bike?

Yes, BERGAMONT only sells E-Bikes with pedal assist. This means that if you dont pedal, nothing happens. This assistance goes generally from +50% of additional power to +300% depending on the mode.

What kind of maintenance do I need to do on my E-Bike and how often?

The maintenance is pretty limited and simple. By yourself you can wash it, apply oil on the chain, wipe it down and check brake pad wear. We recommend to visit your local dealer for scheduled maintenance work as specified in the product manual to avoid any mechanical issues.

Can I do the maintenance by myself on my E-Bike?

Everything related to the drive unit needs to be carried out by the manufacturer for safety and security reasons.

Can I wash my E-Bike?

As an E-Bike is water resistant you can wash it as you would wash a normal bike.

For improving the bearing life-cycle, do not use a high-pressure washer. Once it's clean, wipe off the bike and lubricate the chain with of bit of oil in order to improve the lifetime of your drive train. We recommend to wipe the electrical contact plates of the battery afterwards as well.

Can I ride my E-Bike when it's raining or in the mud?

Both the engine and the battery is water resistant, so there is no problem for riding in wet conditions.

Can I take an E-Bike onboard a plane?

Getting on a plane with an E-Bike requires special authorization, please contact your airline before booking your ticket.

What are Amp hours (Ah) and Watt hours (Wh) for an E-Bike?

Both refer to the capacity of the battery. The higher these numbers are, the more autonomy the battery has but the, larger, heavier and more expensive the battery is. Standard capacity is 500Wh.

How long does it takes to charge my E-Bike battery?

Nowadays most of the batteries (500wh) need around 4.5-5 hours to be charged completely and less than 3 hours for 80%

Are E-Bike batteries fixed on the frame or can they be removed?

The battery has a retaining system to secure it against theft. You need a key to remove the battery from the frame but no further tools are required.

What do I do if I lose my E-Bike's battery's keys?

All BERGAMONT E-Bike keys come with a serial number. As soon as you have your bike, register your key on Mobile Security. This allows you to order a replacement key whenever you want.

If you don't have this number anymore, please contact your dealer.

How should I store the battery of my E-Bike?

For longer storage we recommend you to stock the battery at ambient temperature, ideally between 18-20° Celsius. Avoid leaving your battery on your bike during cold nights or directly exposing it to the sun.

Does my battery get damaged if i dont charge it all the way?

With Lithium Ion batteries interim charging doesn't matter. As all BERGAMONT bikes are equipped with Lithium batteries, feel free to charge your battery as you wish. For the first charging cycle please read the user manual and follow the indications.

Can I plug any battery into the battery mount of my E-Bike?

Always use the original battery and the original charger of your E-Bike to avoid any issues or defects.
